H9MO-LMXE.VX SDH&MPLS&PCM Hybrid Multiplexer
Product Overview
H9MO-LMXE.VX is a carrier-class, cost-effective, compact, high-capacity SDH & IP Network integrated transmission platform that is designed for application in metro and access networks to facilitate the efficient transport of traditional TDM and increasing Ethernet data traffic for service providers. Multiple services can be transported over SDH network and IP metro network easily via H9MO-LMXE.VX. Both SDH Cross-connection Matrix and Packet Switching Core are supported. It complies with Carrier Ethernet standards defined by MEF.
H9MO-LMXE.VX is a card based compact SDH & IP Network integrated equipment, designed mainly as a gateway node between the core SDH/IP network and number of remote CPE boxes. It may also be used as a multi service SDH ADM node in a typical ring or mesh network.
H9MO-LMXE.VX supports multiple SDH network features as follows:
l Support 1+1 MSP, SNCP protection
l Management channel can be DCC/ E1/ VC12
l Support up to STM-64
l E1 BERT test is embedded
l Internal clock/ external clock/ line clock/ clock holdover
l Ethernet service supporting GFP encapsulation, VC12 virtual concatenation and LCAS, P VLAN, 801.1Q VLAN and Q in Q
l Large cross-connection capacity: 384*384 VC-4 level full cross connection or 136*136 VC-4 of VC-12 or VC-3 level full crossconnection
H9MO-LMXE.VX supports multiple Packet-switching network features as follows:
l Switching capacity is up to 100Gbps
l Support up to 10GE
l Comply with MPLS-TP standards
l Comply with ITU-T ELPS/ G.8031, ERPS/ G.8032
l Comply MEF CE2.0 and support E-Line, E-Tree, and E-LAN
l 1+1 Redundancy for Ethernet Aggregation Cards
l Support LACP, 802.1Q, Q in Q, xSTP, etc.
l Support Carrier Class OAM (IEEE 802.3ah, IEEE802.1ag, ITU-T Y.1731)
l Support Sync-E, IEEE 1588 v2
H9MO-LMXE.VX supports the following services on different ports:
l STM-1/ STM-4/ STM-16/ STM-64
l GE/ 10GE
l GE/ FE(Optical and Electrical)
l E1/ V.35/ E3/ DS3
l FXO/ FXS/ Hotline, RS232/ RS422/ RS485, Differential protection/ C37.94, Distance Protection, 2-wir/ 4-wire E&M etc.
Hardware Architecture
H9MO-LMXE.VX is composed of SDH cross-connection cards, IP packet switching cards, and tributary service cards.There are 22 slots, including 2 slots for hot standby power cards, 2 slots for packet switching & management card, 2 slots for TDM cross-connection cards,10 slots for TDM tributary cards and 6 slots for packet slots.
The SDH and PCM service cards are compatible with H5600 series.
Features
Cross-connection Capacity | High Order: 384*384 VC4s Low Order: 8568*8568 VC12s |
Cross-connection mode | Bidirectional, Unidirectional, Multicast/ broadcast and loopback |
Packet Switching Capacity | 100Gbps |
High Light Features | ü Comply to both SDH Standards and MPLS-TP Standards ü Both STM-64 and 10 Gigabit Ethernet interface supported ü Carrier-class OAM, IEEE 802.3ah, 802.1ag, ITU-T Y.1731 supported ü Full redundancy design, including power supply, cross-connection matrixes, Ethernet switching cores ü E1/ STM-1 Pseudo Wire Emulation Edge to Edge supported ü E-Line, E-Tree, and E-LAN supported ü SNMP, in-band/ out-band management supported ü Sync-E supported |
Specifications
Index | Performance Parameter | |
SDH Uplink Interface (NNI) | Uplink | STM-1/ STM-4/ STM-16/ STM-64 |
Connector | LC/ PC or SC/ PC or FC/ PC | |
Spec. | S1.1, S1.2, L1.1, L1.2, S4.1, S4.2, L4.1, L4.2, S16.1, S16.2, L16.1, L16.2, S64.1, S64.2, L64.1, L64.2 | |
Dual/ Single fiber bi-directional interface are optional | ||
Ethernet Uplink Interface (NNI) | Uplink Capacity | GE/ 10GE interfaces (1+1 Redundancy) |
Connector | SFP/ SFP + Optical Module | |
Management | Interface | 10/ 100 Base-T (can be cascaded) |
EOW interface | Standard socket RJ11 | |
Physical Dimension(H/D/W) | 4U: 176 × 255 × 440 (mm) | |
Power | Supply | AC and DC dual power supply |
Consumption | ≤160W | |
Environment | Temperature | -10°C~50°C |
Humidity | ≤90 %(non-condensing) | |
Typical Application

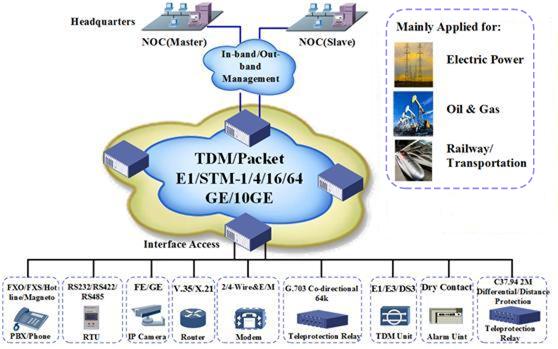

Integrated Services Accessover TDM and Packet Network
