HW7000 Series Ethernet Switches

Product Overview

HW7000 series Ethernet switch products independently developed by Beijing Huahuan Electronics Co., Ltd. are positioned to meet the indoor and outdoor deployment application scenarios of government and enterprise private network users. Including industrial grade switch, commercial grade switch, installation methods are rail installation and rack installation. Industrial switches meet the outdoor, corridor, installation box and other wide temperature working environment, commercial switches meet the indoor room rack installation environment.

Ø Industrial grade rail mounted switch

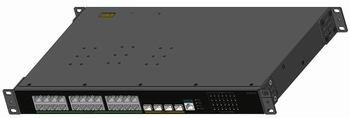

Ø Industrial grade rack mounted switches

Ø Commercial grade rack mount switches

Product Specifications

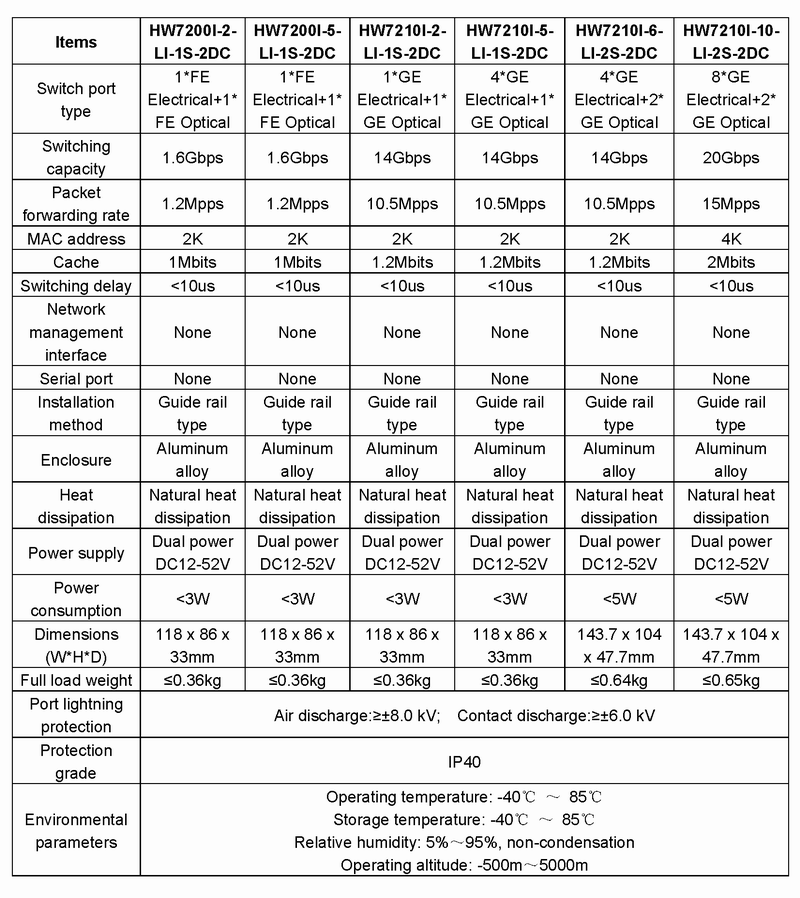

1、Unmanaged rail type industrial switch

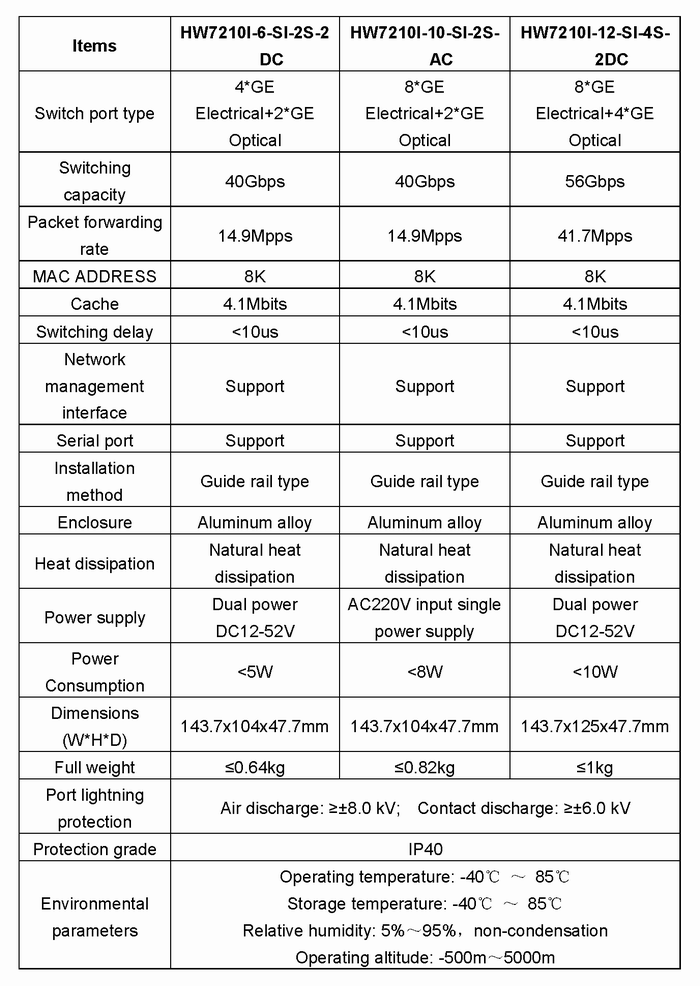

2、Managed rail type industrial switch

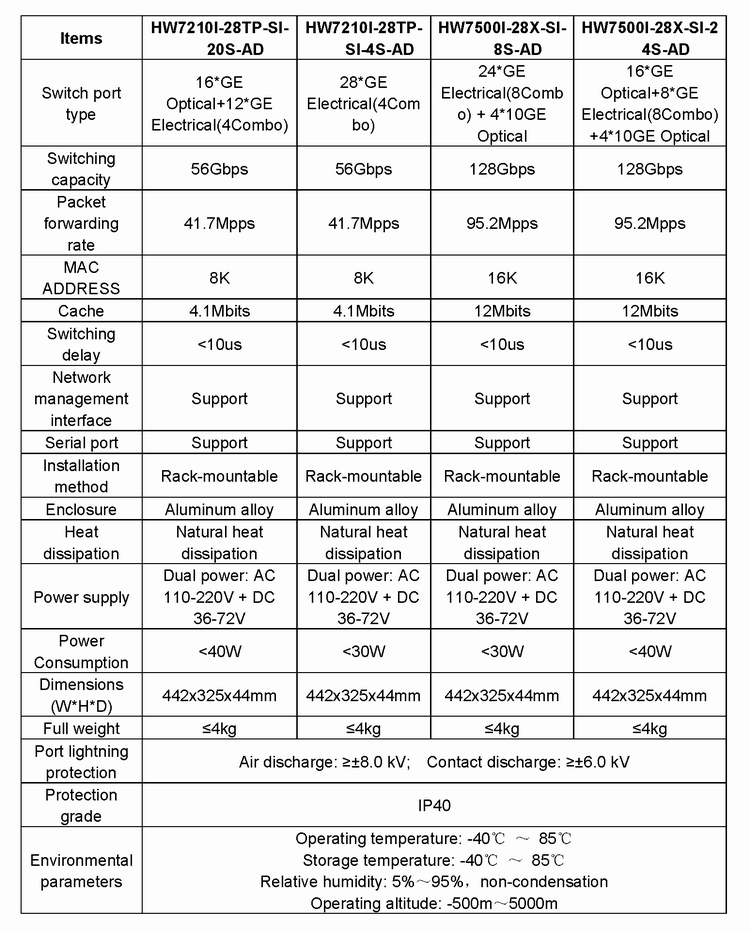

3、Managed rack industrial switch
