HT8000 Series DCI and Backbone WDM Devices

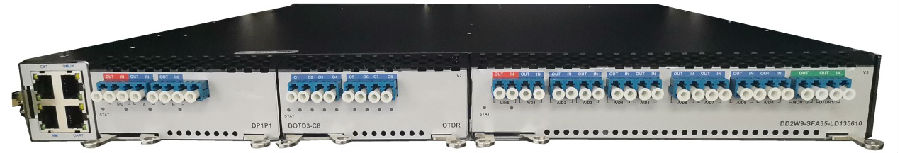

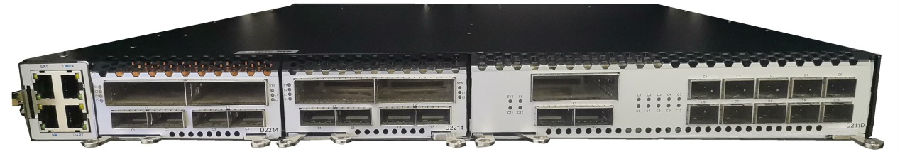

HT8000-DI
HT8000-DI is a 1U device with front air in and rear air outlet design. The front panel of the chassis provides 4 1/4 slots or 2 1/2 slots, and NM slots;
the rear panel of the chassis can be configured with Dual AC power supply or dual DC power supply cards, supporting power 1+1 protection, and it provides the fan card.

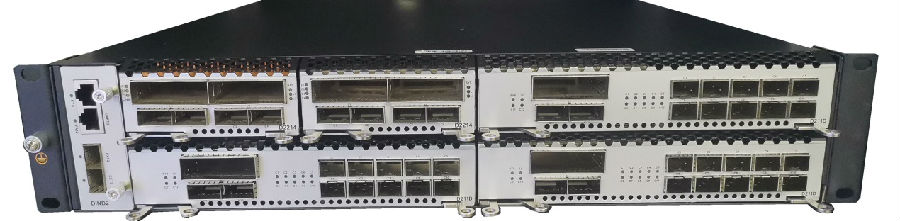

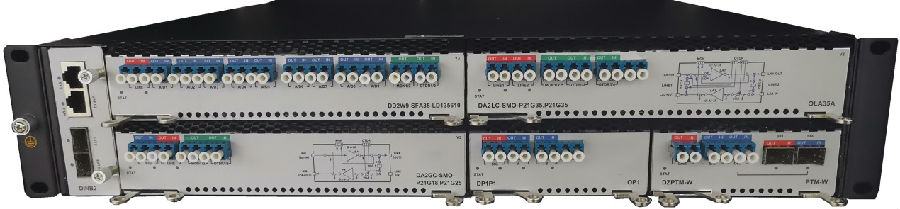

HT8000-DII
The HT8000-DII is a 2U device with front air in and rear air outlet design. The front panel of the chassis provides 8 1/4 slots or 4 1/2 slots;
the rear panel of the chassis supports master-control management cards 1+1 protection and power supply 1+1 protection with dual AC power
supply cards or dual DC power supply cards.
HT8000-DI/DII platform support below electrical cards:
1) 100G UNI/200G NNI universal card
2) 100G UNI/400G NNI universal card
3) 10G UNI/200G NNI universal card
HT8000-DI/DII platform support below optical cards:
Optical amplifying card (terminal node), optical amplifying card (Linear amplifying node), TFF wavelength Add/drop card, OP (optical protection) card, OTDR (optical time domain reflector) card, OCM (optical channel monitoring) card, WSS (ROADM) wavelength switching card, PTM time synchronization card, 48-wave passive Multiplexer and Demultiplexer card (external).
Product Specifications
Items | HT8000-DI | HT8000-DII | |
Application Scenarios | Electrical layer application scenarios of DCI-BOX interconnected in data centers; Metro/Backbone WDM Application Scenarios | ||
Device Height | 1U | 2U | |
Service Slot | 4 1/4, compatible with 2 1/2 | 8 1/4, compatible with 4 1/2 | |
Master-control card | Single master control | Dual master-control 1+1 redundancy, support hot swap | |
Electrical layer card | 4*100G UNI/1*400G NNI universal card | 400G TMUX: multiplexes 4 channels of 100G on the UNI side into 1 channel of 400G on the NNI side; occupies 1 1/4 slot | 400G TMUX: multiplexes 4 channels of 100G on the UNI side into 1 channel of 400G on the NNI side; occupies 1 1/4 slot |
200G universal line service card | 200G TMUX: multiplexes 4 channels of 100G on the UNI side into 2 channels of 200G on the NNI side; occupies 1 1/4 slot | 200G TMUX-1: multiplexes 10 channels of UNI 10G+1 channels of 100G (2 channels of 100G on the UNI side) into 1 channel of 200G on the NNI side; occupies 1 1/2 slot | |
200G TMUX-2: multiplexes 4 channels of 100G on the UNI side into 2 channels of 200G on the NNI side; occupies 1 1/4 slot | |||
200G TMUX: multiplexes 20 channels of 10G on the UNI side into 1 channel of 200G on the NNI side; occupies 1 1/2 slot
| 200G TMUX-3: multiplexes 20 channels of 10G on the UNI side into 1 channel of 200G on the NNI side; occupies 1 1/2 slot | ||
Optical layer card | OA (Optical amplifying card) | OA25: The maximum gain is 25dB; OA35: The maximum gain is 35dB; OLA25: The maximum gain of LA1 and LA2 is 25dB; OLA35A: The maximum gain of LA1 and LA2 is 35dB; OLA35B: The maximum gain of LA1 is 25dB, The maximum gain of LA2 is 35dB | |
TFF (Optical Add/drop Multiplexer card) | TFF1619: 4 channels of wavelength Add/drop 191.6THz~191.9THz | ||
OP (optical protection card） | OP1: single-channel optical protection card; OP2: Dual-channel optical protection card | ||
OTDR (Optical Time Domain Reflector) | OTDR: supports 8 optical ports | ||
OCM (Optical Channel Monitoring Board) | OCM: supports 8 optical ports | ||
WSS (Wavelength Switch Board) | TWS09OA25: 9-dimensional WSS, the maximum PA gain is 25dB; TWS09OA35: 9-dimensional WSS, the maximum PA gain is 35dB; | ||
PTM（Pulse Time Modulation） | PTM-W: west PTM-E: east | ||
Passive Mux/Demux card (external) | MUX48: 48-wave Mux/Demux card MUX48: 96-wave Mux/Demux card | ||
Power supply | Dual-DC power input: -36V～-72V； Dual-AC power input: 165V～265V； | Dual-DC power input: -36V～-72V； Dual-AC power input: 165V～265V HVDC: 240V（210V～270V） | |
Equipment level protection | Power 1+1 protection | Power 1+1 protection | |
Fan protection | Supports 3 fan cards, supports 2:1 backup, after 1 fan card fails, the system can work in normal temperature environment | Supports 5 fan cards, supports 4:1 backup, after 1 fan card fails, the system can work in normal temperature environment | |
Full load power consumption | ≤600W | ≤1200W | |
Dimensions (W*H*D) | 443mm×44mm×252mm | 443mm×88mm×252mm | |
Full load weight | ≤7KG | ≤14KG | |
System reliability | MTBF: ≥100000hours Fan life: ≥70000hours | MTBF: ≥100000hours Fan life: ≥70000hours | |
Environmental parameters | Operating temperature:-5℃～45℃ Storage temperature: -40°C～70°C Relative humidity: 5%～90%, no condensation Operating altitude: -500m～5000m | ||
