H9MO-LMP30 Compact PCM Mux
ProductOverview
H9MO-LMP30 is a small optical transmission-access integrated device, whose multiplexing unituses SDH/MSTP technology with 2 STM-1 optical ports. There are 4/8 E1 ports, 4 100Base-Tx Ethernet ports and 30 PCM voice ports .
Features
l Multiple business ADM/TM equipment, suitable to form a ring, chain form network, support SNCP protection switch
l Standard STM-1 optical interface. wavelength and power, optical interfacetype optional
l Support multiple user interface type, including E1 / Ethernet and voice port
l Four Ethernet port comply with IEEE 802.3 standard, support auto-negotiation, and 10/100 M full duplex/half-duplex forced mode, support AUTO-MDIX
l 4 E1 port comply with ITU-T G-703, built-in error tester and loop back test function
l Support 30 channel 2W Voice port (FXO/FXS / 2100 Hz magnets), or 22 channel 2W phone + 8 channel 4W audio + 4 channel E&M signaling
l Support laser automatic shutdown ALS function
l Abundant alarm instructions, including AC power lost instructions alarm
l Support the path protection switching report function
l 19 inches 1 U standard chassis
l Wide-range DC -48V and AC 220Vdouble model power supply
l Support lower program and FPGA program online upgrading and level 1 versionreturn back
l Can work with SDH equipment and realize network management
TechnicalSpecifications
Item | Description |
STM-1 port | 2xSTM-1 port, SC/PC |
E1 port | 4/8xE1 ports, BNC/RJ48C/CC4 connector |
Ethernet port | 4 FE ports, RJ45 connector, 10Base-TX / 100Base-TX, Auto-negotiation |
NMS port | 10Base-T/100Base-T , auto-negotiation |
Low speed port | Supply up to 30 channel voice, including FXO, FXS, Hotline, Magneto, 2/4W+E&M, RS232/422/485 |
Power | AC: 1U device: 100~240 V, 50/60Hz |
DC: 1U device: -48V (-72V~-36V) | |
Consumption | £50 W |
Working temperature | -10 ~ 55°C |
Humidity | 0-90%RH ((Non-condensing) |
Mechanical size | 1U device: 45mm x 290mm x 440mm |

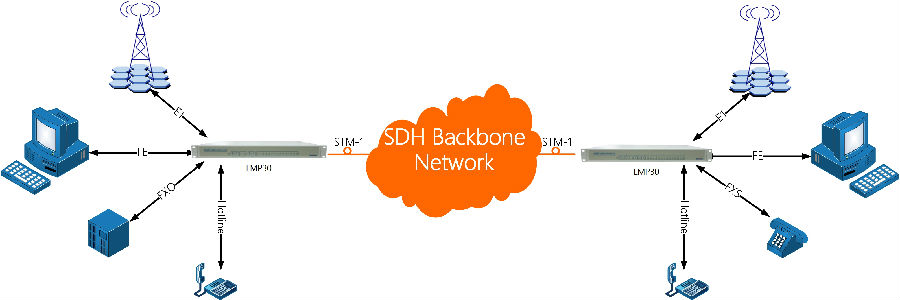

TypicalApplication
