Product Overview
HT8000-I/II/VI is Huahuan distributed cross-connection OTN/xWDM platform which can support below cards:
1. Management and clock card:insert in slot 1/2;
2. Integrating UNI side and NNI side OTNcards:8 any rate to 2 OTU2 card, 2 *10G are mapped to OTU2 and
support NNI interface 1+1 protected,4 *10G transparent transmission to 4 *OTU2 card,
2*100G transparent transmission to 1 *OTU4 card etc ;
3. MUX/DEMUX card: 48 chor 96 chcard;
4. EDFA /RAMAN card:BAPARA card;
5. DCM card:40/80/120 km card;
6. OLP card: single CH 1+1 OLP card, single CH 1:1OLP card;
7. OTDR card:8 ports card;
8. OCM card:8 ports card.

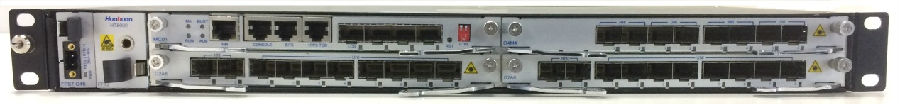

HT8000-I, is a 1U modular-designOTN/xWDM with 4 slots,
supporting 8/16 wavelength per system with EDFA/DCM/OLPcards.

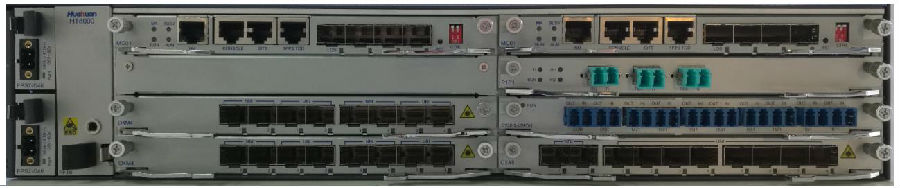

HT8000-II, is a 2U modular-designPacket OTN/xWDM with 8 slots,
supporting 8/16/40 wavelength per system with EDFA/DCM/OLP cards.

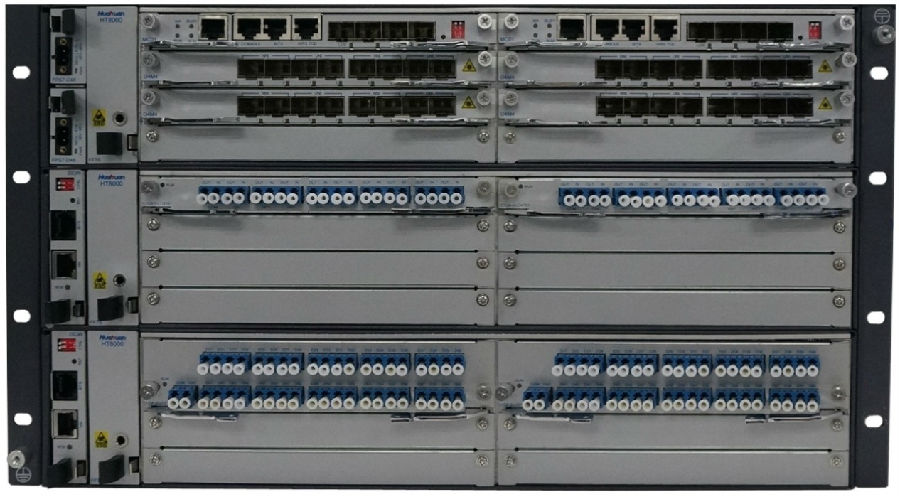

HT8000-VI, is a 6U modular-designOTN/xWDM with 24 slots,
supporting 40/80 wavelength per system withEDFA/DCM/OLP cards.
Specifications
Items | HT8000-I | HT8000-II | HT8000-VI |
Integrating UNI side and NNI side OTN cards | O2A8-D：8 any rate to 2* OTU2 O2M2-P：2 *10G are mapped to OTU2 and support NNI interface 1+1 protected O4M4：4 *10G transparent transmission to 4* OTU2; O1M2C:2*100G transparent transmission to 1*OTU4 | O2A8-D：8 any rate to 2* OTU2 O2M2-P：2 *10G are mapped to OTU2 and support NNI interface 1+1 protected O4M4：4 *10G transparent transmission to 4* OTU2; O1M2C:2*100G transparent transmission to 1*OTU4 | O2A8-D：8 any rate to 2* OTU2 O2M2-P：2 *10G are mapped to OTU2 and support NNI interface 1+1 protected O4M4：4 *10G transparent transmission to 4* OTU2; O1M2C:2*100G transparent transmission to 1*OTU4 |
MUX/DEMUX cards | DWDM：40/48/96 ch CWDM：8 ch | DWDM：40/48/96 ch CWDM：8 ch | DWDM：40/48/96 ch CWDM：8 ch |
OA cards | C-band BA+PA integrated optical amplifier C-band Raman optical amplifier Single channel BA+PA integrated optical amplifier | C-band BA+PA integrated optical amplifier C-band Raman optical amplifier Single channel BA+PA integrated optical amplifier | C-band BA+PA integrated optical amplifier C-band Raman optical amplifier Single channel BA+PA integrated optical amplifier |
DCM cards | B1FN-40：40 km DCM B1FN-60：60 km DCM B1FN-80：80 km DCM B2GN-120：120 km DCM | B1FN-40：40 km DCM B1FN-60：60 km DCM B1FN-80：80 km DCM B2GN-120：120 km DCM | B1FN-40：40 km DCM B1FN-60：60 km DCM B1FN-80：80 km DCM B2GN-120：120 km DCM |
OLP cards | NNI interface 1+1 protected：P1P1 NNI interface 1:1 protected ：P1R1 | NNI interface 1+1 protected：P1P1 NNI interface 1:1 protected ：P1R1 | NNI interface 1+1 protected：P1P1 NNI interface 1:1 protected ：P1R1 |
OTDR cards | 8-channel OTDR card, dynamic range: 26, 36, 43db | 8-channel OTDR card, dynamic range: 26, 36, 43db | 8-channel OTDR card, dynamic range: 26, 36, 43db |
OCM cards | 8-channel optical channel monitoring card | 8-channel optical channel monitoring card | 8-channel optical channel monitoring card |
OSW cards | 8-channel optical switch card | 8-channel optical switch card | 8-channel optical switch card |
Power input | DC: -36V～-72V; AC: 165V～265V, uses Huahuan’s HX-2.AC-DC power converter | ||
Full load power consumption | ≤120W | ≤250W | ≤700W |
Dimensions (W*H*D) | 443mm×89mm×252mm | 443mm×89mm×252mm | 443mm×266mm×330mm |
Full loadweight | ≤4KG | ≤8KG | ≤24KG |
Environment parameters | Operating temperature：-5℃～ 55℃ | Storage temperature：-40°C～70°C | Relative humidity：5%～90% (non-condensation) |
EMC | CISPR 22 Ed2.0 2008-09 CISPR 24 Ed2.0 2010-08 EN 55022:2010 GB 9254-2008 AS/NZS CISPR 22:2009 FCC 47 CFR Part 15 (latest current version) ICES-003 Issue 5 VCCI V-3/2013.04 EN 55024:2010 ETSI EN 300 386 V1.6.1(2012-09) | ||
Safety | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB4943.1 | ||
