Product Overview

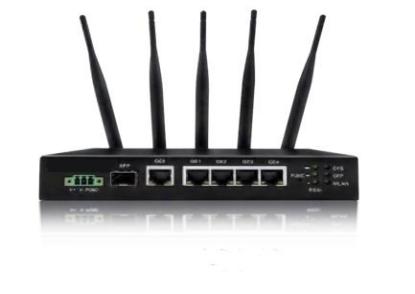

Industrial  4G  Wire/Wireless  Router  is integrating  multiple  network  application  technologies  such  as  4G  access technology,WIFI technology, routing technology, switching technology, network security technology etc.HR-S1G5-L with five10/100/1000Mbps Ethernet Ports and   one   100/1000Mbps    SFP    Optical    Ports,   HR-S2G8-L  with    eight 10/100/1000Mbps Ethernet Ports and two100/1000Mbps SFP Optical Ports,the HR-S1G5-L/S2G8-LRouter is compatible with 4G/3.5G/3G/2.5G network and  supports  802.11b/g/n  WIFI.  HR-S1G5-L/S2G8-LRouter  owns  flagship configuration,VPN functions and industrial design,soitcanbuildhigh-speedand stable wireless transmission network easily, support data collection as well as provide long distance

wirelessdata transfer function for customers by public 3G & 4G network.

Because of its industrial design and excellent selection of components,the  device can withstand high

temperature and low temperature, and can still work  stably in complex environments such as outdoor and in-car,thus it provides customers  with  wireless  secure  access   network scheme  that   is  of  high dependability and high performanceprice ratio. The product can be widely used for many scenarios such as finance, transportation, security,water conservancy,environmental protection,electricity,post,meteorology,energy,and the next

generation of IoT.

Features

Support  5/8  Ethernet   Ports  of  10/100/1000M,   all   ports  supportWAN/LAN;

Support 1/2 SFP Optical Ports of 100/1000M,direct access to optical networks, including GPON access when using

GPON SFP stick(GPON ONU);

Support TDD-LTE、FDD-LTE、TD-SCDMA、UMTS、EVDO、EDGE、CDMA1x、GPRS

Support various network protocols: TCP/IP, UDP, HTTP, TELNET, ICMP,DHCP,PPPOE,

DNS,DDNS etc;

       Support static routingand dynamic routingofRIP/OSPF/ISIS/BGP;

       Support MPLS services, can be deployed invarious solution scenarios;

       Support MPLS LDP protocol;

       Support PW3, VPLSand other L2VPN, alsoL3VPN;

      Support  QoS: packets  priority,  traffic policing,  traffic  shaping,  rate-limiting;

      Support network management of CLI, WEB and SNMP;

     Support ACL,NAT function;

     Support firewall, packet filtering,URL filtering etc;

     Support VPN functions:GRE,L2TP,PPTP,IPSEC,OpenVPN,EOIP,MPLSL2/L3VPN etc;

     Support 802.1Q VLAN, also QinQ;

     Support link detective functions such as BFD、DLDPetc.,it can switch to back-uplink quickly according to detective result;

     Support  port mirroring；

     Support log function.

Specifications

Technical  parameters of  HR-S1G5-L/S2G8-Lindustrial 4G wire/wireless

router is as follows:
